在電力傳輸與線纜管理領域，槽式電纜橋架憑借獨特的設計與實用功能，成為各類工程場景中不可或缺的設施。這種橋架通過科學的結構設計與材質選擇，為電纜提供穩定的敷設環境，保障電力系統的運行。

　　In the field of power transmission and cable management, trough cable trays have become indispensable facilities in various engineering scenarios due to their unique design and practical functions. This type of cable tray provides a safe and stable laying environment for cables through scientific structural design and material selection, ensuring the efficient operation of the power system.

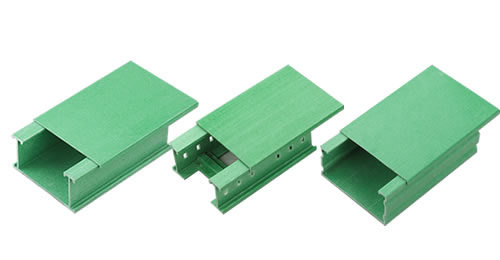

　　槽式電纜橋架的基礎構造賦予其鮮明的辨識度與實用性。它整體呈槽形結構，由底板和側邊垂直圍合而成，類似無蓋的長方體凹槽，這種造型使得電纜能夠有序鋪設于槽內。橋架通常采用冷軋鋼板、不銹鋼或鋁合金等材質制成，冷軋鋼板成本較低且具備一定強度，不銹鋼材質則以優異的耐腐蝕性能見長，鋁合金橋架重量輕且抗氧化能力強。不同材質的選擇，滿足了從普通室內環境到潮濕、高腐蝕等特殊場景的多樣化需求。

　　The basic structure of the trough cable tray endows it with distinct recognition and practicality. It has a groove shaped structure as a whole, which is vertically enclosed by a bottom plate and side edges, similar to an uncovered rectangular groove. This shape allows cables to be laid in an orderly manner inside the groove. Bridge frames are usually made of cold-rolled steel plates, stainless steel, or aluminum alloys. Cold rolled steel plates are low-cost and have a certain strength, while stainless steel materials are known for their excellent corrosion resistance. Aluminum alloy bridge frames are lightweight and have strong oxidation resistance. The selection of different materials meets the diverse needs from ordinary indoor environments to special scenarios such as humidity and high corrosion.

　　防護性能是槽式電纜橋架的核心優勢。其封閉式的結構如同給電纜穿上一層堅固的 “鎧甲”，能夠有效阻擋灰塵、水汽、油污以及小動物的侵?jǐn)_，避免電纜因外部因素受損。在工業廠房中，生產過程產生的金屬碎屑、化學粉塵可能威脅電纜，槽式電纜橋架的密封特性可將這些隱患隔絕在外；在地下室、隧道等潮濕環境中，它能防止電纜受潮老化，延長電纜使用壽命。此外，當遭遇火災時，部分采用防火材質或經過防火處理的槽式橋架，還能延緩火勢蔓延，為電纜提供額外的保障。

　　The protective performance is the core advantage of trough cable trays. Its enclosed structure is like putting a strong "armor" on the cable, which can effectively block dust, water vapor, oil stains, and small animal intrusion, avoiding damage to the cable due to external factors. In industrial plants, metal debris and chemical dust generated during the production process may pose a threat to cable safety, and the sealing characteristics of trough cable trays can isolate these hazards; In damp environments such as basements and tunnels, it can prevent cables from getting damp and aging, and extend the service life of cables. In addition, when encountering a fire, some trough type cable trays made of fire-resistant materials or treated with fire-resistant measures can also delay the spread of fire and provide additional safety protection for cables.

　　在安裝與維護方面，槽式電纜橋架同樣表現出色。它的安裝方式靈活多樣，可通過吊裝、側壁安裝或地面支架支撐等形式固定。橋架之間采用螺栓連接或?qū)Ｓ眠B接件拼接，能夠根據實際工程需求，自由組合成直線段、彎通、三通、四通等不同形態，適應復雜的建筑布局與電纜走向。日常維護時，由于電纜集中收納在橋架內，工作人員能夠快速定位故障電纜，進行檢修或更換，大大提高了維護效率，降低了管理成本。

　　In terms of installation and maintenance, trough cable trays also perform well. Its installation methods are flexible and diverse, and can be fixed through lifting, side wall installation, or ground support. The cable trays are connected by bolts or special connectors, which can be freely combined into different forms such as straight sections, bends, tees, and crosses according to actual engineering needs, adapting to complex building layouts and cable routing. During daily maintenance, due to the cables being centrally stored in the cable tray, staff can quickly locate faulty cables for inspection or replacement, greatly improving maintenance efficiency and reducing management costs.

　　散熱與電磁屏蔽性能進一步提升了槽式電纜橋架的實用性。橋架的金屬材質具有良好的導熱性，當電纜在傳輸電力過程中產生熱量時，熱量能夠通過橋架快速散發，避免因熱量積聚導致電纜溫度過高，影響傳輸性能甚引發事故。對于通信電纜、計算機網絡電纜等對電磁干擾敏感的線纜，槽式電纜橋架的金屬外殼能夠形成屏蔽層，有效阻擋外界電磁信號干擾，保證信號傳輸?shù)姆€(wěn)定性與準確性，使其在數據中心、通信機房等場所得到廣泛應用。

　　The heat dissipation and electromagnetic shielding performance have further improved the practicality of trough cable trays. The metal material of the cable tray has good thermal conductivity. When the cable generates heat during the transmission of electricity, the heat can be quickly dissipated through the cable tray, avoiding excessive cable temperature caused by heat accumulation, affecting transmission performance, and even causing safety accidents. For cables sensitive to electromagnetic interference such as communication cables and computer network cables, the metal shell of trough cable trays can form a shielding layer, effectively blocking external electromagnetic signal interference, ensuring the stability and accuracy of signal transmission, and making them widely used in data centers, communication rooms, and other fields.

　　槽式電纜橋架憑借科學的構造、的防護性能、便捷的安裝維護以及良好的散熱與屏蔽功能，在工業建筑、商業樓宇、交通設施等眾多領域發揮著重要作用。無論是保障電力系統穩定運行，還是滿足現代化通信需求，它都以可靠的性能為各類工程提供堅實支撐，成為線纜管理中的得力 “助手”。

　　Trough cable trays play an important role in many fields such as industrial buildings, commercial buildings, transportation facilities, etc. due to their scientific construction, excellent protective performance, convenient installation and maintenance, and good heat dissipation and shielding functions. Whether it is ensuring the stable operation of the power system or meeting the needs of modern communication, it provides solid support for various projects with reliable performance, becoming a powerful "assistant" in cable management.
