在電氣安裝的世界里，橋架如同線纜的 “高速公路”，承載著電力與信號的傳輸重任。但為何總強調橋架要預留空間？這并非空穴來風，而是一組組數據背后的工程智慧，默默守護著電氣系統的穩定與。

　　In the world of electrical installation, cable trays are like "highways" of cables, carrying the heavy responsibility of transmitting electricity and signals. But why do we always emphasize the need to reserve space for cable trays? This is not groundless, but the engineering wisdom behind sets of data silently guarding the stability and safety of the electrical system.

　　從線纜敷設的角度看，預留空間是為未來 “擴容” 做準備。在建筑或工業項目的生命周期中，用電需求并非一成不變。以商業綜合體為例，初期可能僅配備基礎照明與少量設備用電，但隨著入駐商戶增多，增設空調、廣告屏、智能系統等設備成為必然。若橋架未預留空間，后續新增線纜將面臨無處可放的窘境，強行擠壓不僅會影響原有線纜的散熱與絕緣性能，還可能導致信號干擾，甚引發短路風險。行業經驗表明，為應對 5 - 10 年的用電增長，橋架內線纜填充率宜控制在 40% - 50%，留出一半左右的空間，才能從容接納未來的新增線路。

　　From the perspective of cable laying, reserving space is a preparation for future expansion. Electricity demand is not constant throughout the lifecycle of a building or industrial project. Taking commercial complexes as an example, in the initial stage, they may only be equipped with basic lighting and a small amount of equipment electricity. However, as more merchants settle in, it becomes inevitable to add devices such as air conditioning, advertising screens, and intelligent systems. If there is no reserved space in the cable tray, the subsequent addition of cables will face the dilemma of having nowhere to place them. Forcefully squeezing will not only affect the heat dissipation and insulation performance of the original cables, but may also cause signal interference and even short-circuit risks. Industry experience shows that in order to cope with the 5-10 year increase in electricity consumption, the cable filling rate inside the bridge should be controlled at 40% -50%, leaving about half of the space to accommodate future new lines with ease.

　　散熱需求也是預留空間的關鍵考量。線纜在傳輸電流時會產生熱量，若橋架內空間狹窄、線纜密集，熱量難以散發，將導致線纜溫度持續升高。數據顯示，當線纜工作溫度超過額定值 10℃，其絕緣材料老化速度將加快 30%，使用壽命大幅縮短。以高溫環境下的工業廠房為例，若橋架未預留足夠空間，線纜長期處于高溫狀態，可能在 3 - 5 年內就出現絕緣層開裂、漏電等問題。而合理的空間預留，能形成空氣對流通道，幫助熱量快速散發，使線纜始終保持在工作溫度范圍內，延長其使用年限 10 - 15 年。

　　The heat dissipation requirement is also a key consideration for reserving space. When cables transmit current, they generate heat. If the space inside the cable tray is narrow and the cables are dense, the heat is difficult to dissipate, which will lead to a continuous increase in cable temperature. Data shows that when the operating temperature of the cable exceeds the rated value of 10 ℃, the aging rate of its insulation material will accelerate by 30%, and the service life will be significantly shortened. Taking industrial plants in high-temperature environments as an example, if the cable tray does not reserve enough space and the cables are in a high-temperature state for a long time, problems such as insulation cracking and leakage may occur within 3-5 years. Reasonable space reservation can form air convection channels, help dissipate heat quickly, keep cables within a safe working temperature range, and extend their service life to 10-15 years.

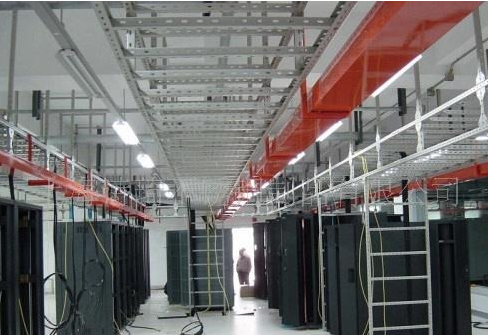

　　預留空間更是保障維護檢修效率的必要條件。當電氣系統出現故障時，檢修人員需快速排查問題線纜。若橋架內線纜擁擠雜亂，不僅難以辨認線路走向，還增加了拆卸與重新安裝的難度。有研究指出，在空間充足的橋架中，故障排查時間可縮短 60% 以上。例如，在大型數據中心，預留空間的橋架能讓檢修人員輕松抽取、更換故障線纜；反之，空間不足的橋架可能需要拆除大量其他線纜，耗時耗力，甚影響整個系統的正常運行。

　　Reserved space is a necessary condition for ensuring maintenance and repair efficiency. When the electrical system malfunctions, maintenance personnel need to quickly troubleshoot the problematic cables. If the cables in the bridge are crowded and disorderly, it is not only difficult to identify the direction of the lines, but also increases the difficulty of disassembly and reinstallation. Research has shown that in cable trays with sufficient space, troubleshooting time can be reduced by over 60%. For example, in large data centers, cable trays with reserved space allow maintenance personnel to easily extract and replace faulty cables; On the contrary, cable trays with insufficient space may require the removal of a large number of other cables, which is time-consuming and labor-intensive, and may even affect the normal operation of the entire system.

　　此外，預留空間還關乎線纜的彎曲半徑要求。不同規格的線纜對小彎曲半徑有嚴格標準，如直徑 10mm 的電纜，其彎曲半徑通常不能小于 80mm。若橋架空間不足，線纜被迫過度彎折，會導致內部導體變形、絕緣層受損，降低線纜的電氣性能。預留空間能確保線纜在敷設時保持自然彎曲，避免因彎折過度引發的信號衰減、電阻增大等問題，保障電力與信號穩定傳輸。

　　In addition, the reserved space is also related to the bending radius requirements of the cable. There are strict standards for the minimum bending radius of cables of different specifications. For example, for cables with a diameter of 10mm, the bending radius should usually not be less than 80mm. If the bridge space is insufficient, the cable is forced to bend excessively, which will cause deformation of the internal conductor, damage to the insulation layer, and reduce the electrical performance of the cable. Reserved space can ensure that cables remain naturally bent during installation, avoiding problems such as signal attenuation and increased resistance caused by excessive bending, and ensuring stable transmission of power and signals.

　　橋架預留空間的每一寸數字，都是對電氣系統長期穩定運行的精準考量。從應對未來用電增長，到解決散熱、維護、線纜性能等實際問題，合理的空間預留就像給電氣系統上了一份 “保險”。只有遵循這些藏在數字里的 “生存法則”，才能讓橋架真正成為可靠的線纜 “高速公路”，為各類場景的電氣運行保駕護航。

　　Every inch of reserved space on the bridge is a precise consideration for the long-term stable operation of the electrical system. Reasonable space reservation is like giving an "insurance" to the electrical system, from addressing future electricity growth to solving practical problems such as heat dissipation, maintenance, and cable performance. Only by following these "survival rules" hidden in numbers can cable trays truly become a reliable "highway" for electrical operations in various scenarios.
